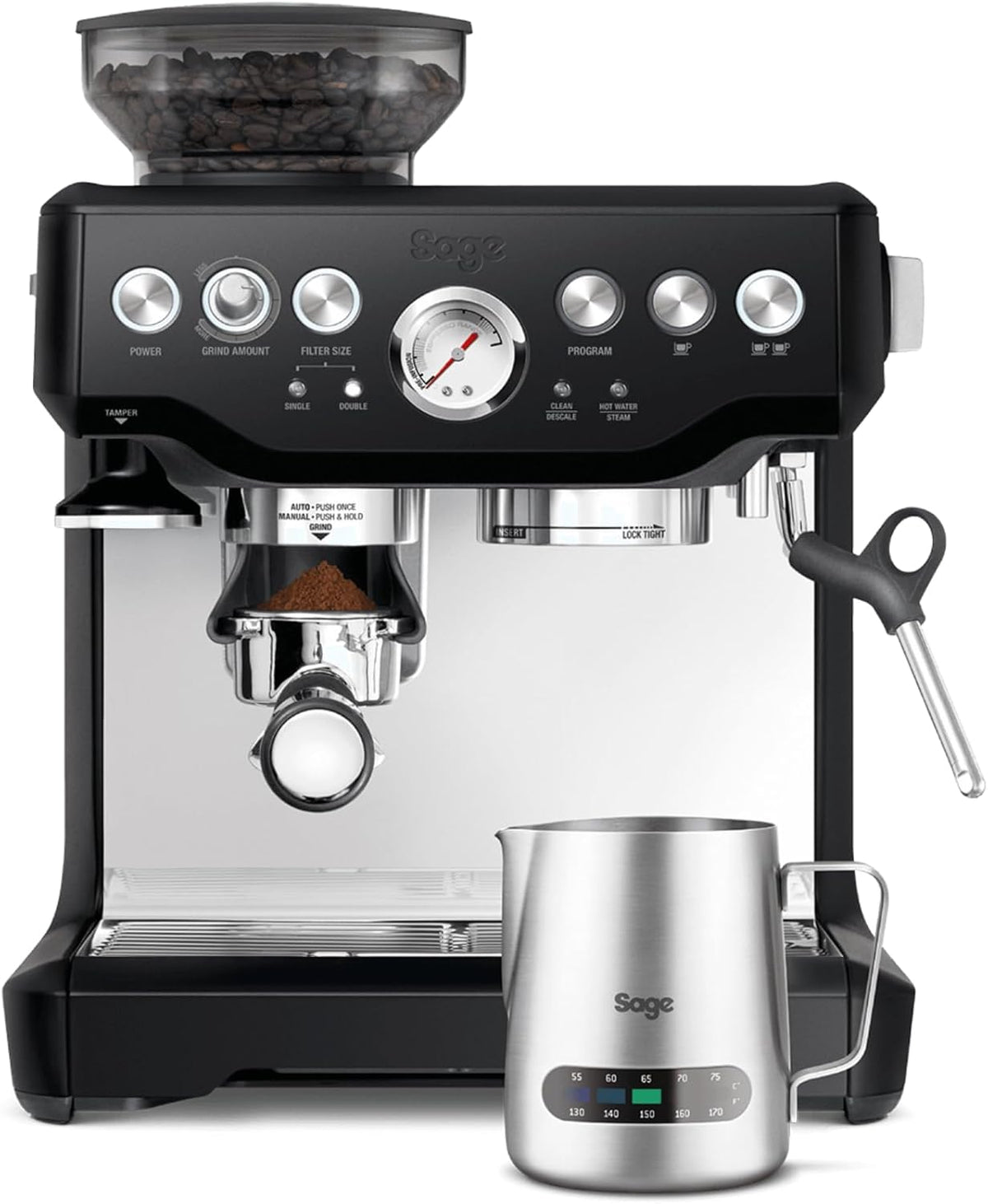

Sage Barista Express – Espresso Machine with Integrated Grinder

Sage Barista Express – Espresso Machine with Integrated Grinder

The Sage Barista Express combines a traditional portafilter espresso machine with an integrated conical-burr grinder, creating a relatively compact route from whole coffee beans to espresso without requiring a separate grinder.

It remains a hands-on machine. You control the grind setting and dose, distribute and tamp the coffee, monitor extraction and texture milk manually. The built-in grinder removes one piece of equipment from the worktop, but it doesn't turn the Barista Express into a bean-to-cup machine.

That makes it particularly interesting for someone who wants to learn espresso while keeping the grinder and espresso machine together in one unit.

Why Consider the Sage Barista Express?

The main attraction is integration.

Building a traditional espresso setup normally means finding space and budget for both an espresso machine and an espresso-capable grinder. The Barista Express combines those functions while retaining the familiar portafilter, steam wand and manual preparation process.

The current UK model combines a steel conical-burr grinder with 16 grind settings, 54mm stainless-steel portafilter, PID-controlled Thermocoil heating system, pressure gauge and manual steam wand.

It's therefore considerably more hands-on than an automatic bean-to-cup machine, but more self-contained than buying a separate espresso machine and grinder.

Key Features

• Integrated conical-burr grinder – Grinds whole beans directly into the portafilter.
• 16 precision grind settings – Allows the grind to be adjusted as different coffees and conditions require.
• Adjustable grind amount – Provides control over how much ground coffee is dispensed.
• 54mm stainless-steel portafilter – Sage designs the system around approximately 18g of coffee.
• Single- and dual-wall baskets – Provides options for different coffee and experience levels.
• Low-pressure pre-infusion – Initially wets the coffee before full extraction pressure is applied.
• 9-bar extraction – Delivered using the machine's 15-bar Italian pump.
• PID-controlled Thermocoil – Electronically manages brewing temperature.
• Espresso pressure gauge – Provides feedback during extraction.
• Manual steam wand – Gives you direct control over milk texturing.
• 250g bean hopper – Integrated above the grinder.
• 2-litre removable water tank – Suitable for regular home use without constant refilling.

From Whole Beans to Espresso

The Barista Express doesn't automate the entire process.

A typical workflow involves:

1. choosing the grind setting;
2. grinding coffee into the portafilter;
3. checking and adjusting the dose;
4. distributing the coffee;
5. tamping;
6. locking the portafilter into the group;
7. starting the extraction;
8. monitoring the result; and
9. adjusting your recipe when necessary.

For milk drinks, you'll then steam and texture the milk manually.

This means there's a genuine learning curve, but it also means the machine gives you considerably more involvement than a system that automatically grinds, brews and dispenses the finished drink.

Integrated Conical-Burr Grinder

The built-in grinder is one of the defining features of the Barista Express.

Sage currently specifies 16 precision grind settings and adjustable grind amount, with coffee delivered directly into the portafilter.

Having the grinder integrated reduces worktop clutter and means you don't need to choose a separate grinder before you can begin using whole beans.

But an integrated grinder also creates a trade-off.

A separate specialist grinder can provide a wider upgrade path and, depending on the model, finer adjustment or more advanced features.

The Barista Express instead prioritises convenience and integration.

Understanding the Pressure Gauge

The analogue pressure gauge provides useful extraction feedback, but it shouldn't be treated as a simple “good shot/bad shot” meter.

Pressure is only one part of espresso extraction.

Grind size, coffee dose, puck preparation, beverage yield, extraction time and – most importantly – taste all matter.

If the gauge behaves differently from expected, use that information alongside the rest of the extraction rather than immediately assuming one specific variable is responsible.

54mm Portafilter and 18g Dose

The Barista Express uses a 54mm stainless-steel portafilter, with Sage designing its brewing system around approximately 18g of freshly ground coffee.

As with the Bambino Plus, we wouldn't describe 54mm as “commercial-sized”. Many commercial espresso machines use a 58mm format.

That distinction doesn't make Sage's system inherently better or worse. It's simply the portafilter size around which the machine has been designed.

Single-Wall and Dual-Wall Baskets

The machine includes both single-wall and dual-wall filter baskets for one- and two-cup brewing.

Dual-wall baskets provide a more forgiving starting point when grind and coffee preparation aren't precisely controlled.

Single-wall baskets put much more responsibility on grind size, dose and puck preparation.

If your aim is to learn how to dial in espresso properly, the single-wall basket becomes particularly useful as your technique develops.

Low-Pressure Pre-Infusion and 9-Bar Extraction

Sage's current brewing specification uses low-pressure pre-infusion followed by 9-bar extraction, supplied through a 15-bar Italian pump.

The initial lower-pressure stage wets the coffee before the machine moves into the main extraction.

The important point is that the pump's maximum 15-bar rating shouldn't be interpreted as the pressure you should be trying to achieve through the coffee.

Higher maximum pump pressure isn't a measure of better espresso.

Thermocoil Heating and PID Control

The Barista Express uses a Thermocoil heating system with electronic PID temperature control.

Sage specifies its brewing system around 93°C water delivery.

The PID is there to control the machine's brewing temperature; this isn't the same as having an advanced user-adjustable PID display that lets you freely select different brewing temperatures.

If experimenting extensively with brew temperature is important to you, a more advanced espresso machine may provide greater control.

Manual Milk Texturing

Unlike the Bambino Plus, milk preparation on the Barista Express is manual.

You position the steam wand, introduce air and create circulation in the milk yourself.

That takes practice.

The advantage is that you're learning a transferable milk-texturing skill rather than selecting an automatic texture programme.

As technique improves, you can work towards the finer textured milk used for drinks such as flat whites, cappuccinos and lattes.

Volumetric Shot Controls

The machine provides dedicated one- and two-cup controls as well as the ability to programme shot volumes.

That's convenient for everyday use, although anyone learning espresso will benefit from occasionally weighing the coffee going into the basket and the espresso coming out.

Weight gives you a much clearer picture of the relationship between dose and beverage yield than relying solely on a programmed button.

Integrated Tamper and Dosing Funnel

The removable magnetic tamper stores directly on the machine, while Sage's current UK package also includes its Dosing Funnel.

The funnel attaches to the portafilter while grinding and helps prevent loose grounds spilling over the edge of the basket.

These are small conveniences, but they make the preparation area easier to keep tidy.

Size and Capacity

Sage currently specifies approximately:

• Width: 31.8cm
• Depth: 35.1cm
• Height: 40.4cm
• Water tank: 2 litres
• Bean hopper: 250g

It's substantially wider than something like the Bambino Plus, but remember that the grinder is already incorporated into that footprint.

A compact espresso machine plus a separate grinder may occupy similar or greater total worktop space once both pieces of equipment are considered.

What's Included?

Sage currently lists:

• Dosing Funnel attachment;
• Razor dose trimming tool;
• 54mm stainless-steel portafilter;
• one- and two-cup single-wall baskets;
• one- and two-cup dual-wall baskets;
• integrated removable tamper;
• stainless-steel milk jug;
• cleaning disc and tablets;
• cleaning brush, tool and Allen key; and
• water-filter holder and filter.

Barista Express vs Bambino Plus

These two Sage machines take quite different approaches.

The Bambino Plus is considerably narrower and uses Sage's very fast ThermoJet heating system. It doesn't contain a grinder, but it does provide automatic milk texturing.

The Barista Express integrates the grinder but leaves milk texturing manual.

Choose between them based on the complete setup rather than simply the espresso machine.

If you already own a capable grinder and value automatic milk, the Bambino Plus may make more sense.

If you want the grinder and espresso machine together and prefer manual milk control, the Barista Express has the clearer proposition.

Barista Express vs Gaggia Classic E24

The Gaggia Classic E24 represents the more traditional machine architecture, with its brass boiler, brass group, 58mm filter-holder and separate-grinder requirement.

The Barista Express provides considerably more integration through its built-in grinder, dosing controls and pressure gauge.

Someone deliberately building an espresso setup around a separate grinder may prefer the flexibility of the Gaggia route.

Someone who wants an integrated grinder and a simpler all-in-one footprint may find the Sage more practical.

Barista Express vs Ninja Luxe Café Premier

The Ninja Luxe Café Premier provides substantially more assistance.

It incorporates a grinder and scale, offers assisted tamping, automatic milk frothing and expands beyond espresso into filter-style coffee and rapid cold coffee.

The Barista Express is much more focused on the traditional espresso-making process.

If you want the machine to guide and automate more of the workflow, the Ninja is worth considering.

If you actively want to grind, dose, tamp, monitor extraction and steam milk yourself, the Sage leaves considerably more of that process in your hands.

Who Is the Sage Barista Express Best For?

The Barista Express is particularly worth considering if you:

• want an espresso machine and grinder in one unit;
• want to learn how grind size affects espresso;
• prefer a traditional portafilter workflow;
• want to texture milk manually;
• don't want a separate grinder occupying additional worktop space;
• want both single- and dual-wall baskets;
• value extraction feedback from a pressure gauge; or
• want meaningful involvement in making the coffee rather than one-touch automation.

Who Should Look Elsewhere?

If you already own a high-quality espresso grinder, paying for another grinder built into the machine may make little sense.

If you want automatic milk texturing, the Bambino Plus or a more automated system may suit you better.

If you want extensive control over temperature, pressure profiles or other advanced extraction parameters, there are more specialist espresso machines.

And if you want to press one button and receive a finished drink, the Barista Express isn't a bean-to-cup machine.

Cleaning and Maintenance

Both the espresso system and grinder require routine care.

Empty and rinse the filter basket and portafilter after brewing, keep the group area clean and wipe and purge the steam wand immediately after texturing milk.

The grinder should also be kept free from excessive coffee residue according to Sage's maintenance instructions.

The machine includes a CLEAN ME indicator and Sage supplies cleaning accessories with the machine.

Water-filter replacement and periodic descaling should also form part of routine ownership.

Our Take

The Sage Barista Express makes most sense when you want the grinder and espresso machine together without giving up the hands-on espresso process.

Its integrated grinder simplifies the equipment decision, while the 54mm portafilter, single-wall baskets, pressure gauge and manual steam wand leave plenty for you to learn.

There are compromises. Sixteen grind settings provide less adjustment than some dedicated espresso grinders, milk steaming is entirely manual, and the integrated design means the grinder and espresso machine aren't independently upgradeable in the same way as separate equipment.

But that's also what distinguishes it from the alternatives.

It's neither a one-touch automatic machine nor simply an espresso machine requiring several additional purchases. It's an integrated, hands-on espresso setup for someone who wants to participate in the process.
